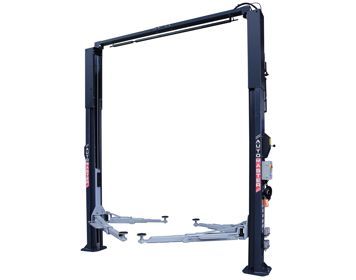

AM-6246R -Automaster Two Post Car Hoist

The Automaster AM-6246R offers flexible installation with the option to position columns either symmetrically or asymmetrically:

  • Asymmetrical configuration allows for wider car door openings, improving vehicle access.
  • Symmetrical configuration provides increased drive-through clearance between the columns.

Engineered for strength, the column design features reinforced Double-S bends for enhanced durability.

This lift can be installed in narrow or wide configuration and with the motor high up on the front of the column, it is completely out of the way & can be installed very close to walls.

There is also a high and a low setting for the top cross bar depending on available roof height.

Minimum of 100mm of concreate for installation

Featuring three stage telescoping front arms,2 stage rears arms, double screw up feet with 80mm 4x4 height extensions, protective rubber pads mounted to the carriage , rubber column guards, remote control, tool trays this lift truly represents the very best value for money .

Supplied in a range of colour options

  • Dark Blue with Blue arms & Yellow tool trays
  • Dark Grey with light Grey arms
  • Light Blue with Grey arms

Operation is a simple single button to go up and lock button to rest the lift onto the locks.

Supplied with a remote control to lift and lower onto locks helps when trying to position the arms under the vehicle

Automaster lifts deliver years of dependability as they are built using only premium-grade components, like balance cables, oil pumps, cylinders & electric motors (plus all other components) this lift will provide reliable, durable performance even in the most demanding environments.

At Automaster, we stand by our products. That’s why we maintain a full inventory of spare parts for all equipment we sell, ensuring continued support and service for years to come.

Local Support & Safety Compliance
Automaster lifts are backed by local support and are fully compliant with both local and international safety standards, including Australian WorkCover registration. You can trust that your equipment meets the highest safety benchmarks—ensuring peace of mind in any professional setting.



  • 3 stage front 2 stage rear arms.
  • Full length hydraulic cylinders with American seals.
  • Top quality high speed motor & pump unit
  • Remote control for up and lock
  • Suitable for 4 x 4’s, vans , low cars, American cars, utes etc..
  • Asymmetric arm configuration and extra wide design for easy door opening
  • Dual cylinder lifting system with balance cables
  • Lowering time 30-40 sec
  • Tool Trays attached to each arm
  • Full 3 year warranty
  • Safety shut down bar across top of hoist
  • Ultra low arm design
  • Rubber door protection pads
  • Low service costs
  • High motor position
  • A single control lever unlocks and lowers the lift,
  • Free 80mm long 4 x 4 adapters.
  • Optional High version 4162mm
  • European CE Safety Certified
Capacity 4500kg
Lift height 1794-1950
Min. height 85mm
Warranty 3 Year
Weight 730
Power supply

230V or 380V/3ph

Concreate minimum thickness

100mm







AM-6246R  Warranty conditions from 01-06-2022

  • Warranty covers manufacturing defects & faulty components
  • Steel structure components including Columns, Carriage, Lifting Arms, Cross Beam etc warranty for FIVE YEARS.
  • Hydraulic parts including cylinders, oil seal, oil hose, fitting etc warranty for THREE YEARS.
  • Other parts electrical components, power unit (not including normal wear & tear/consumable parts such as rubber pad), warranty for THREE YEARS.

We send out all lifts via a freight company and are delivered on a standard curtain-sider truck.

You need a forklift, or access to one to unload the truck.

We can arrange a Hiab delivery in most locations if required for an extra charge. Please ask if needed

Normal delivery times :
Auckland: 1-2 days
Rest of North Island: 2-3 Days
South Island: 4-5 days (ex Auckland) 1-2 days (Ex Chch)
