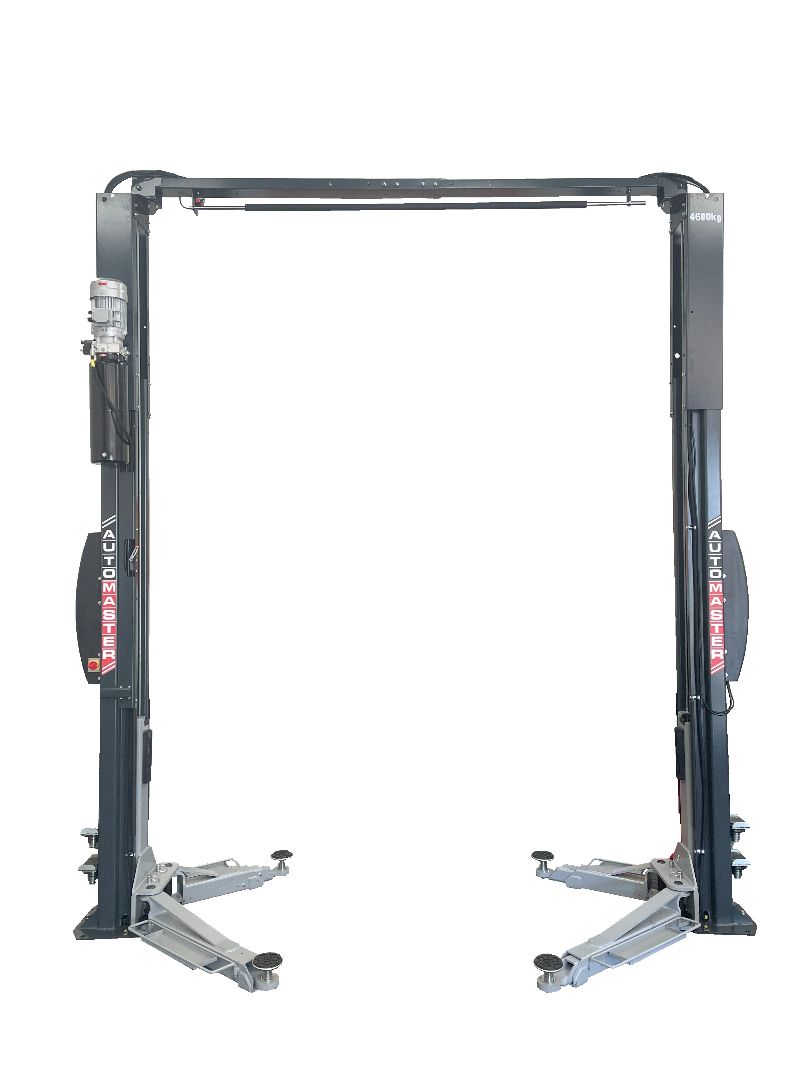

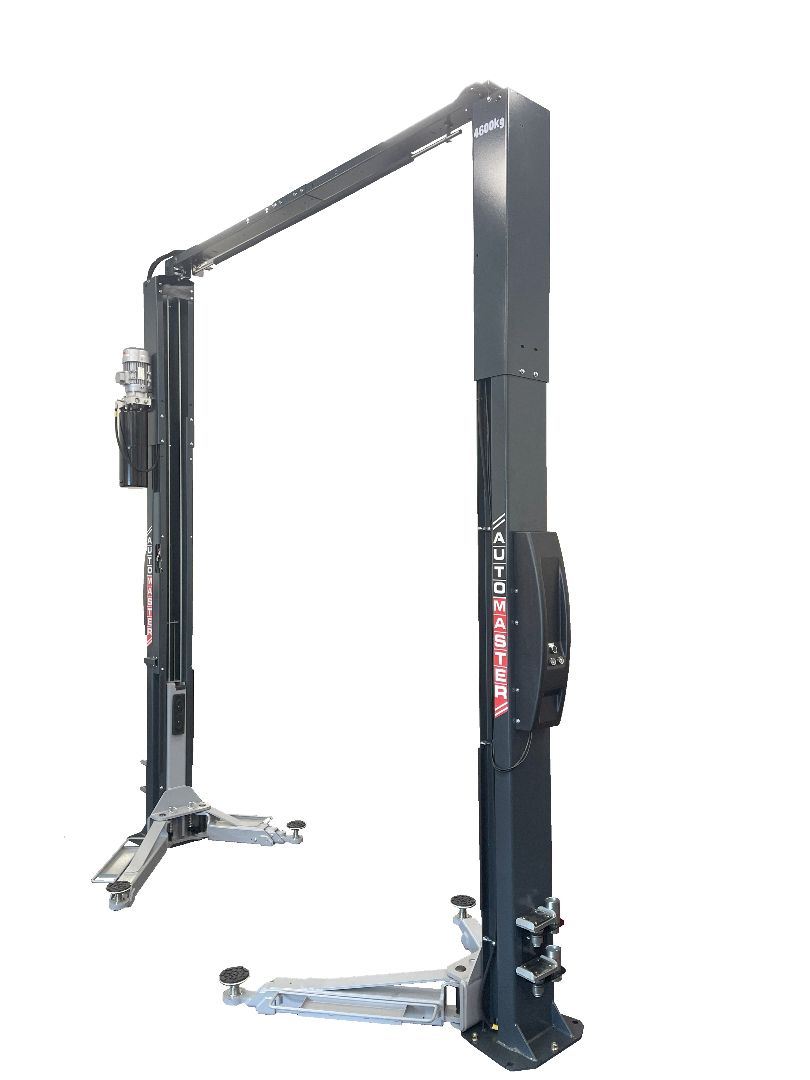

AM-6246TD -Automaster Two Post Car Hoist

"The Automaster AM-6246TD features twin three-button control boxes—one mounted on each post—for convenient operation from either side of the lift of the up, down, and lock functions with an electricly controlled safety lock system.

The Automaster AM-6246TD offers flexible installation with the option to position columns either symmetrically or asymmetrically:

Asymmetrical configuration allows for wider car door openings, improving vehicle access.
Symmetrical configuration provides increased drive-through clearance between the columns.

Engineered for strength, the column design features reinforced Double-S bends for enhanced durability.

This lift can be installed in narrow or wide configuration and with the motor high up on the front of the column, it is completely out of the way & can be installed very close to walls.

There is also a high and a low setting for the top cross bar depending on available roof height.

Minimum of 100mm of concreate for installation

Packed with premium features—including three-stage telescoping front arms, two-stage rear arms, adjustable double screw-up feet with four 80 mm height extensions, four U-adapter lift feet, protective rubber pads, column guards, remote control, and handy tool trays—the AM-6246TD delivers unbeatable value for money.

Effortless to use—press ‘Up’ to lift, ‘Lock’ to secure, and ‘Down’ to lower. With no timer delay, it lowers instantly without first rising, saving you time and hassle.

Automaster lifts deliver years of dependability as they are built using only premium-grade components, like balance cables, oil pumps, cylinders & electric motors (plus all other components) this lift will provide reliable, durable performance even in the most demanding environments.

At Automaster, we stand by our products. That’s why we maintain a full inventory of spare parts for all equipment we sell, ensuring continued support and service for years to come.

Local Support & Safety Compliance
Automaster lifts are backed by local support and are fully compliant with both local and international safety standards, including Australian WorkCover registration. You can trust that your equipment meets the highest safety benchmarks—ensuring peace of mind in any professional setting.

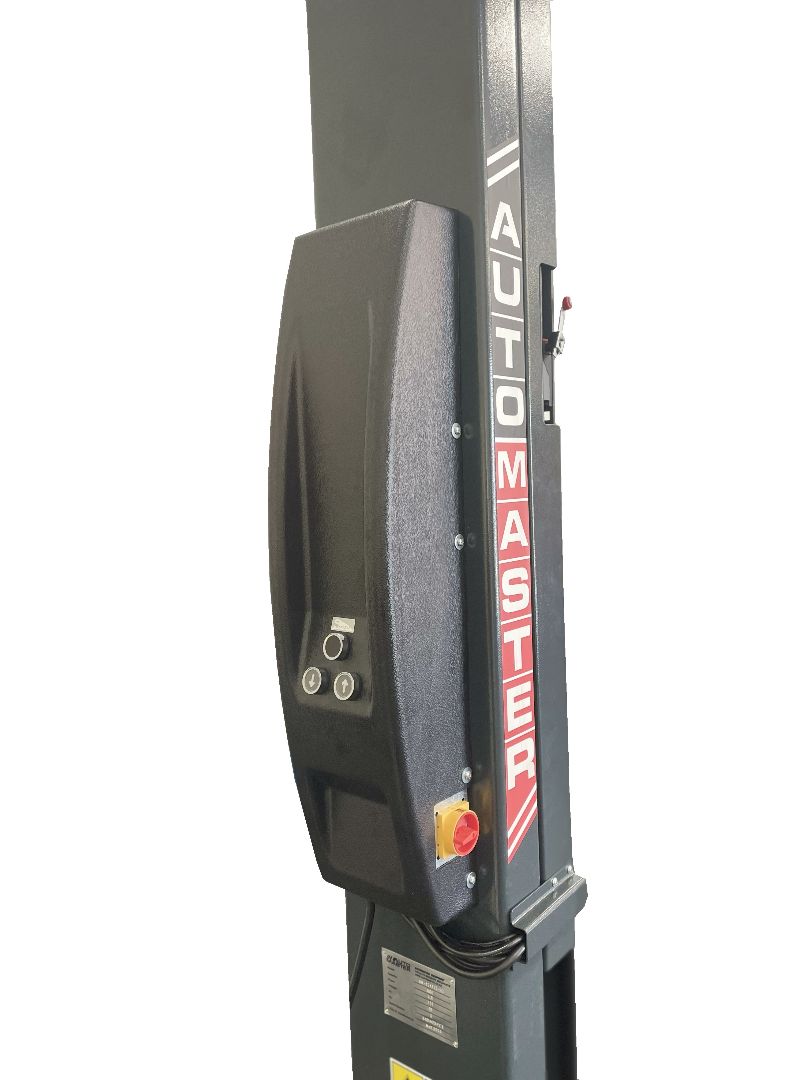

Twin Control Boxes

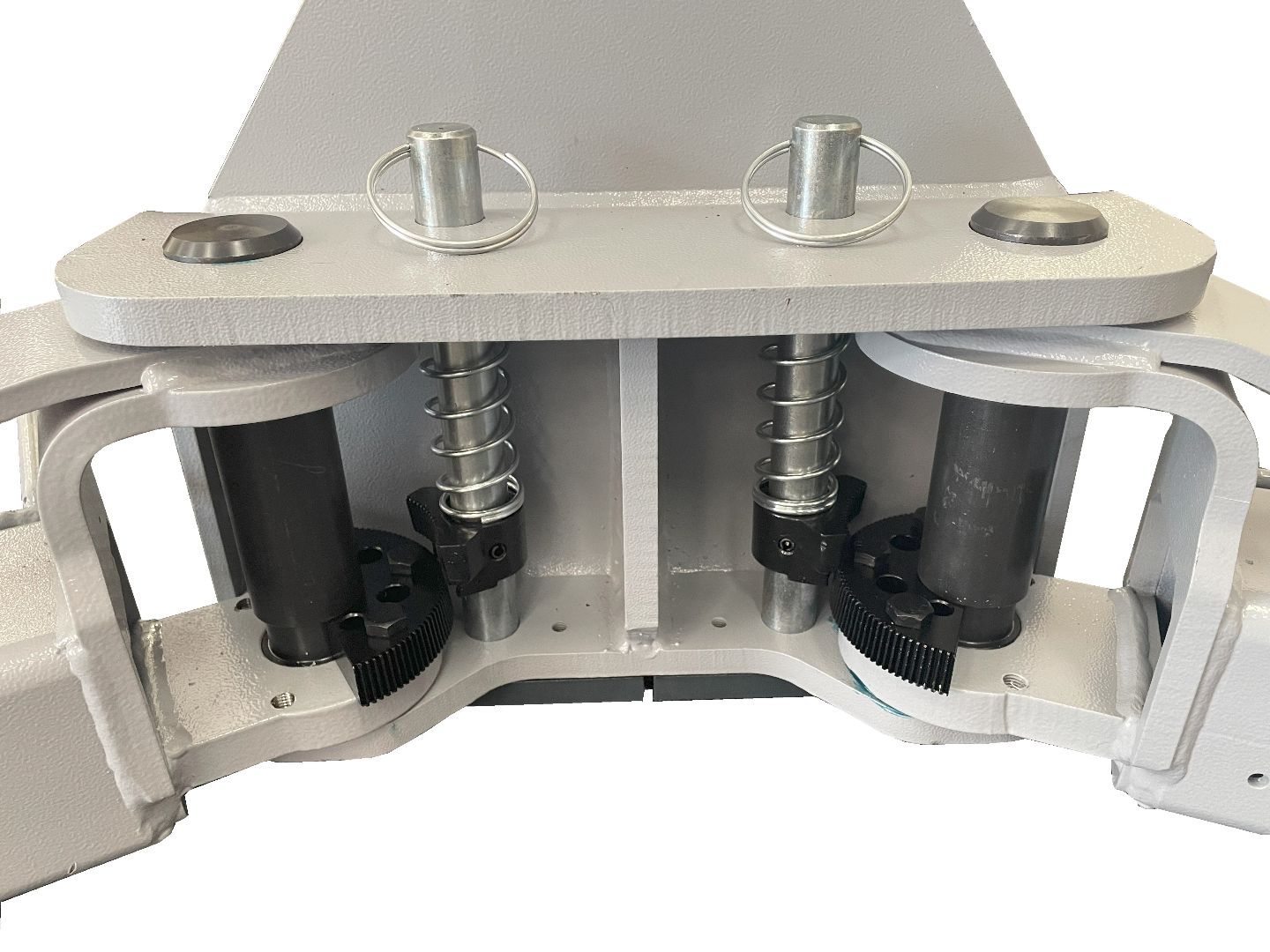

Electrical locking system
4 x U adapter lifting feet
3 stage front 2 stage rear arms.
Full length hydraulic cylinders with American seals.
Top quality high speed motor & pump unit
Suitable for 4 x 4’s, vans , low cars, American cars, utes etc..
Asymmetric arm configuration and extra wide design for easy door opening
Dual cylinder lifting system with balance cables
Lowering time 30-40 sec
Tool Trays attached to each arm
Full 3 year warranty
Safety shut down bar across top of hoist
Ultra low arm design
Rubber door protection pads
Low service costs
High motor position
A single control lever unlocks and lowers the lift,

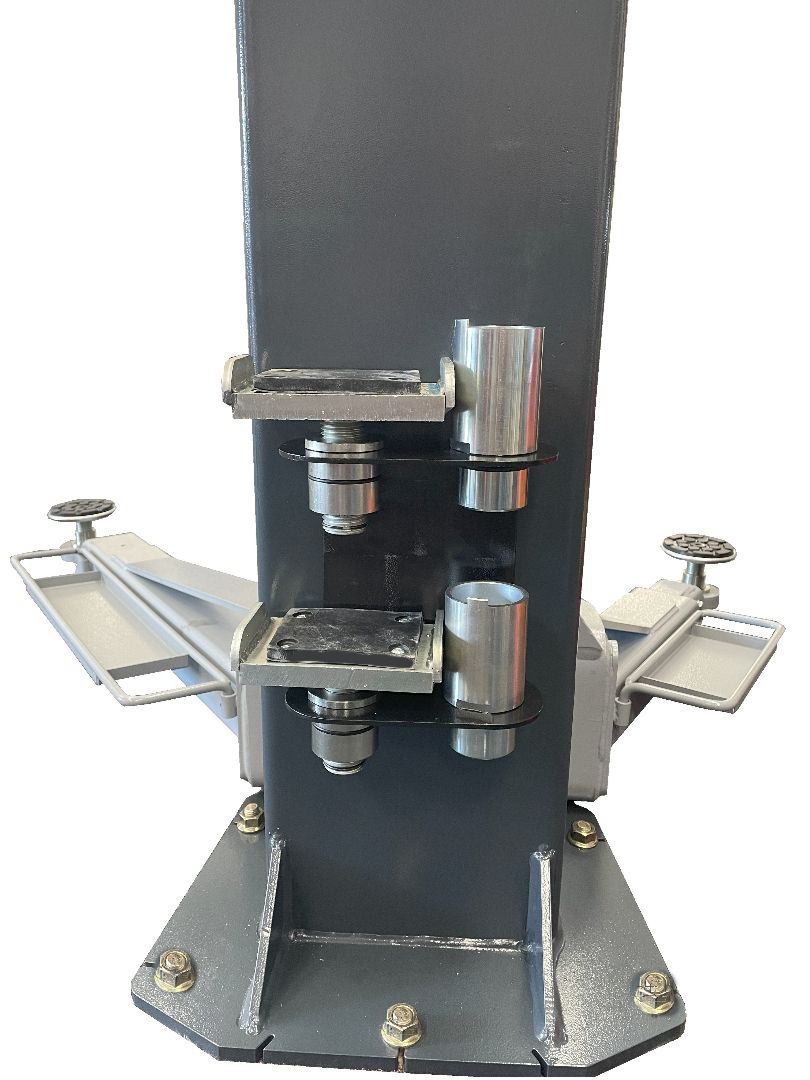

Free 80mm long 4 x 4 adapters.
European CE Safety Certified

Capacity	4500kg
Lift height	1794-1950
Min. height	85mm
Warranty	3 Year
Weight	730
Power supply	230V or 380V/3ph
Concreate minimum thickness	100mm

AM-6246R Warranty conditions from 01-06-2022

Warranty covers manufacturing defects & faulty components
Steel structure components including Columns, Carriage, Lifting Arms, Cross Beam etc warranty for FIVE YEARS.
Hydraulic parts including cylinders, oil seal, oil hose, fitting etc warranty for THREE YEARS.
Other parts electrical components, power unit (not including normal wear & tear/consumable parts such as rubber pad), warranty for THREE YEARS.
