PRODUCTS - Two Post Hoists

P-209C-S Peak 2 Post Clear Floor Car Hoist - 4000kg

Now available in Dark Grey or Blue colours

The P-209C-S is a professional-grade 4,000kg two-post hoist designed for home workshops and light commercial applications. With its clear floor design, direct-drive hydraulic system, and dual height configuration, it combines safety, performance, and convenience in a compact footprint.

With standard features that include two height settings – low or high setting to suit different roof heights

With the single sided lock release there is no need for the operator to go to the other side of the lift and manually unlock both column locks, (as seen in most low cost lifts), complying with New Zealand safety regulations and offering increased convenience.

Only needing 100mm of concreate and single phase power supply this is the perfect lift for any workshop

Direct-Drive Hydraulic Cylinders: Full-length cylinders provide smooth and reliable lifting without the maintenance of chain systems.

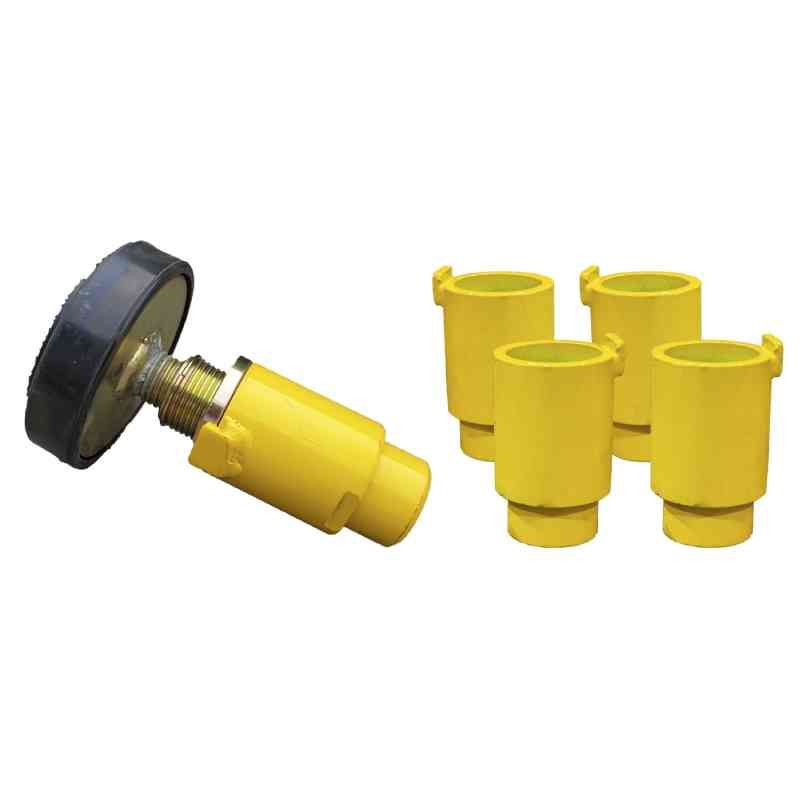

Stackable Adapters & Screw-Up Feet Included: Flexible height adjustment for different lifting points.

Automatic Locking System: Safety locks engage automatically as the lift rises.

One-Column Control Panel: All lift functions—raising and lowering—are conveniently operated from one side.

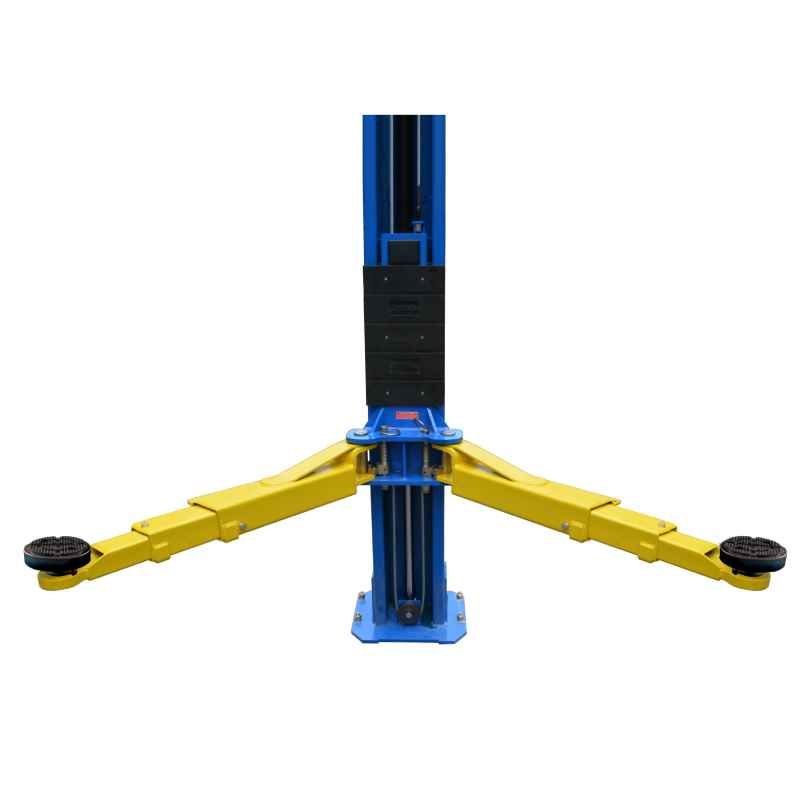

4 x Three-Stage Arms: Accommodates a wide range of vehicle types, from compact cars to light commercial vans.

Available in single phase or three phase power supply

The Clear-floor design, provides unobstructed floor use

Overhead Safety Shut-Off Switch: Prevents accidental damage to high-roof vehicles.

CE (European) Safety Certified: Fully compliant with international safety standards.

Commercial-Grade Design: Heavy-duty construction at an affordable price point.

Why Choose Automaster Equipment?

  • Full inventory of replacement parts in stock.

  • Local support and compliance with local & international safety standards

  • 4000kg (9,000lbs) capacity.
  • Full length dual hydraulic direct-drive cylinders minimizes the number of moving parts to maintain and repair
  • 4 three-stages arms are suitable for more vehicles.
  • 3/8" aircraft quality balance cable is used for synchronization.
  • Single-point safety release, allow technican to disengage both column simultaneously.
  • Self-lubricating UHMW Polyethylene sliders and bronze bushes.
  • Clear-floor design, provide unobstructed floor use.
  • Overhead safety shut-off device prevents vehicle damage.
  • Screw up rubber pads and stackable adapters
  • Large Rubber door protector guards

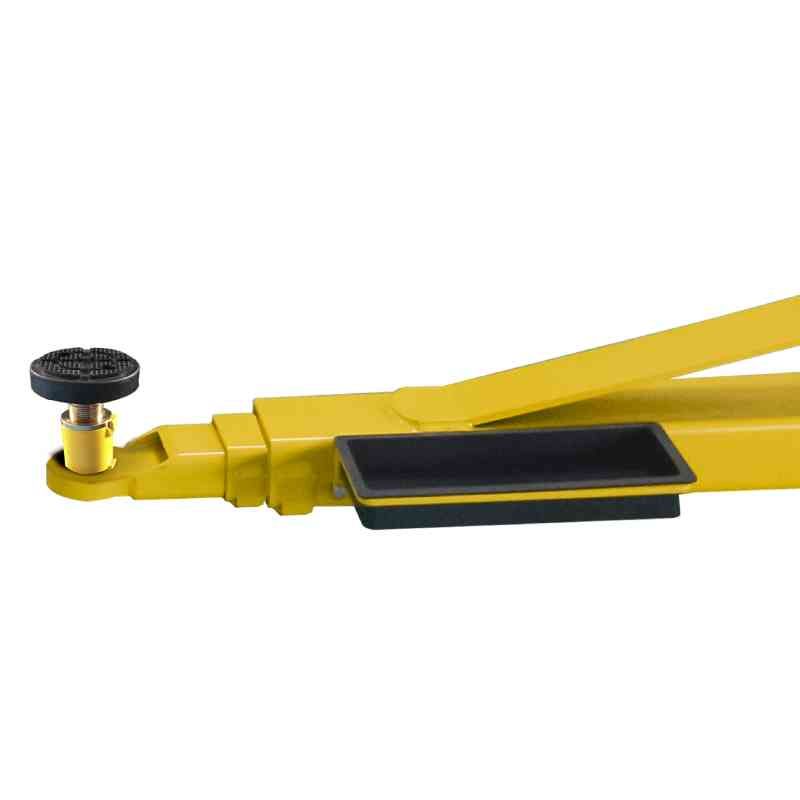

  • Standard toe guards & tool trays (x2) on lifting arms
  • Two height setting for top cross bar accommodates varying ceiling heights
  • European CE Safety Certified
  • Optional 610mm Height Extension - (Height 4431mm)
  • Optional 150mm Width Extension Kit - (Width 3000mm)

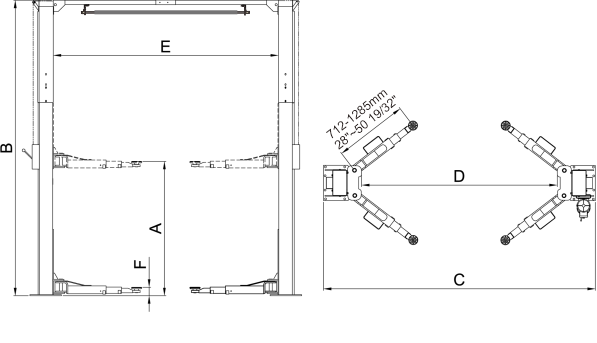

Model 209C



Clear Floor two post lift

Lifting Capacity



4000kg (9,000 lbs)

Lifting Time



57s

Max. Lifting height: (w/o extension adapter)

A

1815mm (71 1/2" )~1863mm(73 3/8")

Max. Lifting height:  (w/ extension adapter)

1891mm (74 7/16")~1939mm(76 5/16")

Max. lock height:  (w/o extension adapter)

1768mm (69 5/8" )~1816mm(71 1/2")

Max. lock height:  (w/ extension adapter)

1844mm (72 5/8" )~1892mm(74 1/2")

Overall Height

B

3635mm (143 1/8")

3835mm（151"）

Overall Width

C

3428mm (135")

Drive-Thru Clearance

D

2528mm (99 1/2")

Width Between Columns

E

2850mm (112 7/32")

Minimum Pad Height

F

89mm (3 1/2")

Gross Weight



695kg (1,369 lbs)

Motor



3.0HP

QTY of Container



25 Units/20'GP
50 Units/40'GP

Packing Dimension



2800 X 450 X 825 mm



Peak Warranty conditions from 01-06-2022

  • Steel structure components including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Base frame etc warranty for FIVE YEARS.
  • Hydraulic parts including cylinders, oil seal, oil hose, fitting etc warranty for TWO YEARS.
  • Other parts electrical components, power unit (not including normal wear & tear/consumable parts such as rubber pad), warranty for TWO YEARS.
  • 4 Post parking lifts warranty as above when installed as a home workshop or parking lift. Not in commercial workshop use environment.

We send out all lifts via a freight company and are delivered on a standard curtain-sider truck.

You need a forklift, or access to one to unload the truck.

We can arrange a Hiab delivery in most locations if required for an extra charge. Please ask if needed

Normal delivery times :
Auckland: 1-2 days
Rest of North Island: 2-3 Days
South Island: 4-5 days (ex Auckland) 1-2 days (Ex Chch)
