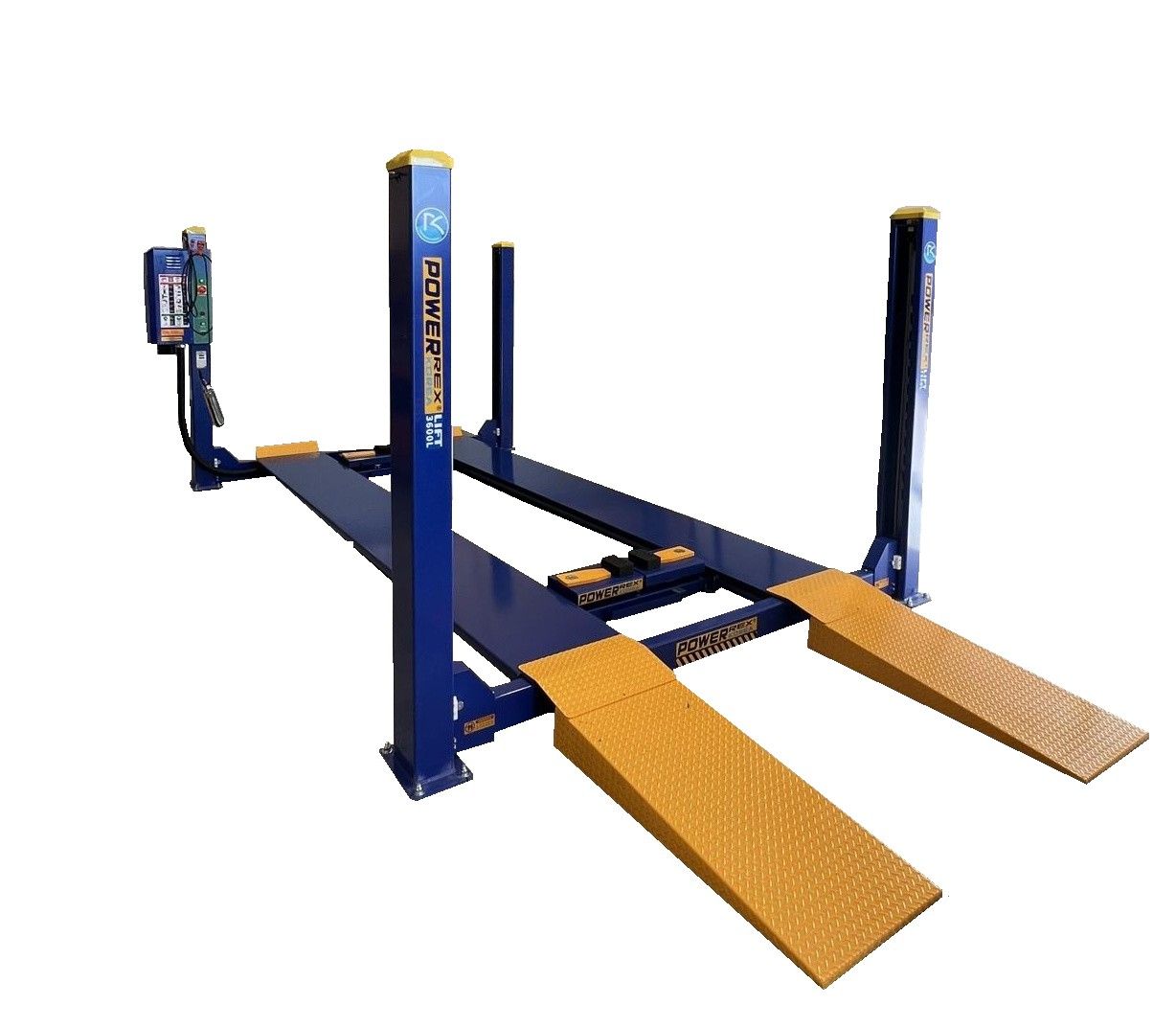

Powerrex SL-3600L Four Post Car Hoist

Normally available in stock in Blue or Black colour options

Premium Quality lift made in Korea

Check out the video in the SL-3600A Alignmnet version for more details

The SL-3600L 4500kg Powerrex Korea lift is 100% Made in Korea.

SL-3600L is a premium quality four post lift supplied with two centre jacking beams as standard to give a wheel free operation for when you need to replace all four tyres or carry out a tyre rotation.

Featuring a 3 button control panel for up, lock and down and a 6 button remote control with up and down control for the lift and each jacking beam.

Each jacking beam also has electrical switches on each side to operate them while in place under the car.

As the jacking beams are powered by the main hydraulic pump of the lift there is no need to run pneumatic air lines to the jacking beams.

The lift platform has a low profile of only 235mm from the ground and is fitted with 1200mm long drive on ramps.

This means the lift can handle low riding cars as well as light commercial vehicles.

The double lock safety system is automatically activated as the lift is raised and includes a cable brakeage emergency locking system should there be failure.

These locks are electrically operated by simply pushing a button on the control panel to unlock and lower the lift, and no pneumatic supply is required.

The adjustable locking ladders in each post enable simple levelling of the lift and ensure all 4 corners of the lift are locked and level.

Operation is a simple single button to go up and lock button to rest the lift onto the locks. Lower button raises the lift off the locks and lowers the lift.

Powerrex Korea:

Premium quality, feature rich, genuine Korean manufactured Powerrex lifts. Powerrex Korea does all it’s manufacturing in their Korean plant so they can completely control all aspects of production from the steel manufacturing, to the powder coating lines ensuring top quality lifts are consistently delivered to their dealers.

Automaster Equipment stocks a complete inventory of parts for the equipment we sell

CE & AUS/NZ Safety regulation

Delivery & installation is not included in list pricing

Delivery & install is not included

  • Normally available in stock in Blue or Black colour options
  • 2 x 2000 kg Electro -Hydraulic Jacking beams included controlled switchs or by remote
  • 6 Button remote controll
  • Electric locking system locks in all four posts of the hoist
  • Lifting height limitation control standard
  • 575mm Wide and 4600mm long runways to accommodate small and large vehicles
  • 4500KG max lift weight
  • Delivery and installation not included
  • 100 % Made in Korea
  • Approved to the Australian/NZ standard.
Column Height 2160mm
Width between columns 2734mm
Total Length 6075 incl ramps
Total width 3370mm incl motor
Ramp length 1200mm
Lifting capacity 4500kg
Runway length 4600mm
Runway width 575mm
Voltage 220v or 380V
Power 2.2KW
Weight 1880kg
Lifting time (Approx) 45-55S
Min. height 235mm
