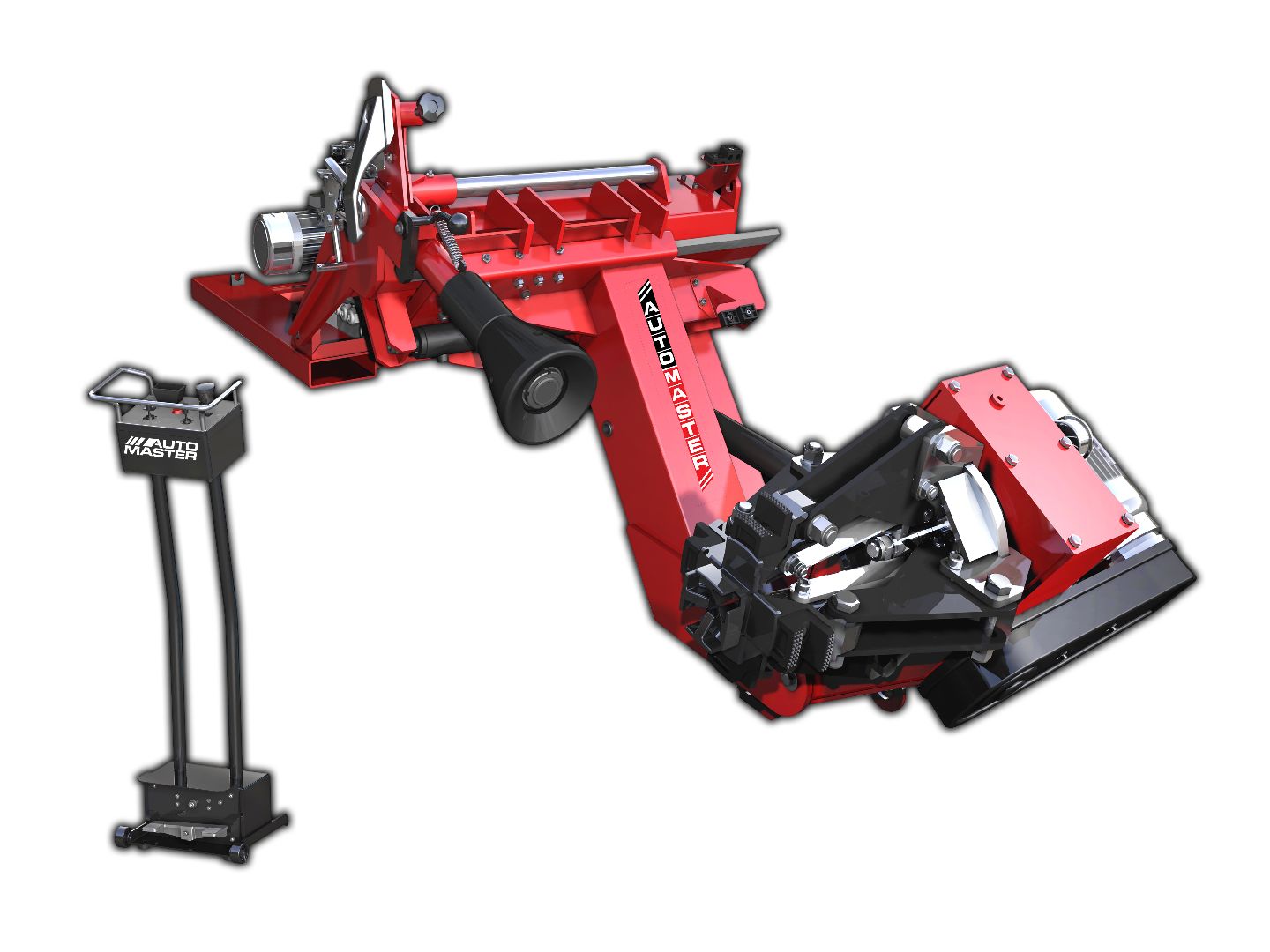

AM-301 Automaster Mobile Truck & Bus Tyre Changer

Automaster AM-301 multi-functional universal truck & bus tyre changer designed to go in a van for mobile service

This machine is designed and engineered to handle rim sizes from 13”-26 inches & tyre diameters of up to1300mm

the AM-301 accommodates tyres with a maximum width of up to 600mm and a max wheel weight of 750kg.

Perfect machine to save time and effort when doing mobile service.

The AM-301 has all the power you will need with twin motors, one to drive the rotation and the other to drive the hydraulic pump.

Automaster Tyre machines deliver years of dependability because they are built using only the highest quality component parts.

Automaster Equipment stocks a complete inventory of parts for the equipment we sell.

FEATURE
With 5 different rim locking positions;
Automatic movement of chuck arm;
Automatic movement of carriage;

Automatic chuck arm tilting outside the van-door or folding back
inside the van after use;
Emergency safety button on control console for stopping all
functions;
As standard, mounting tool and roller for tubeless tyre included

Rim diameter  13"-26"
Maximum wheel diameter 1300mm
Maximum wheel width 600mm
Hydraulic Pump Motor 380V-400V/3PH 1.1kw
Gearbox Motor 380V-400V/3PH 1.5kw
Net weight 450kg
Max Wheel Weight

750kg

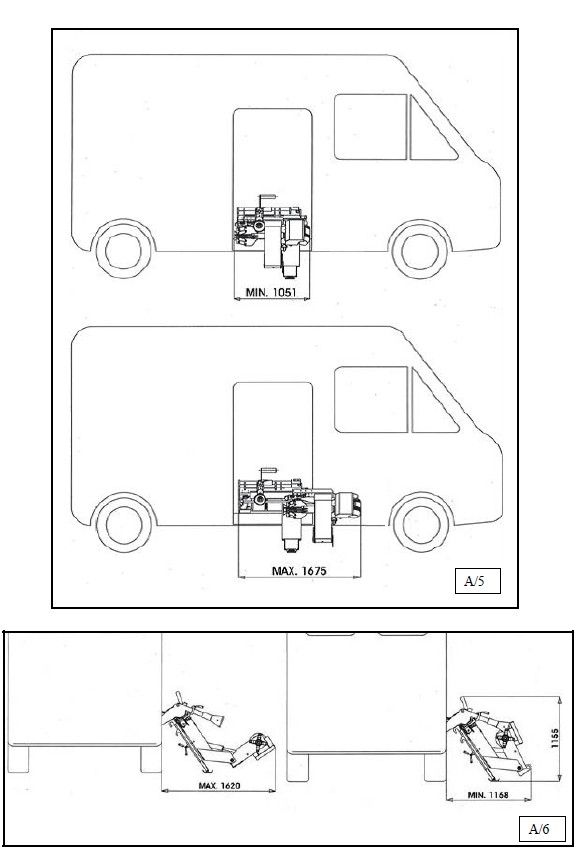

Width 1050-1650mm
Length 1168-1620mm
Height 1155mm
