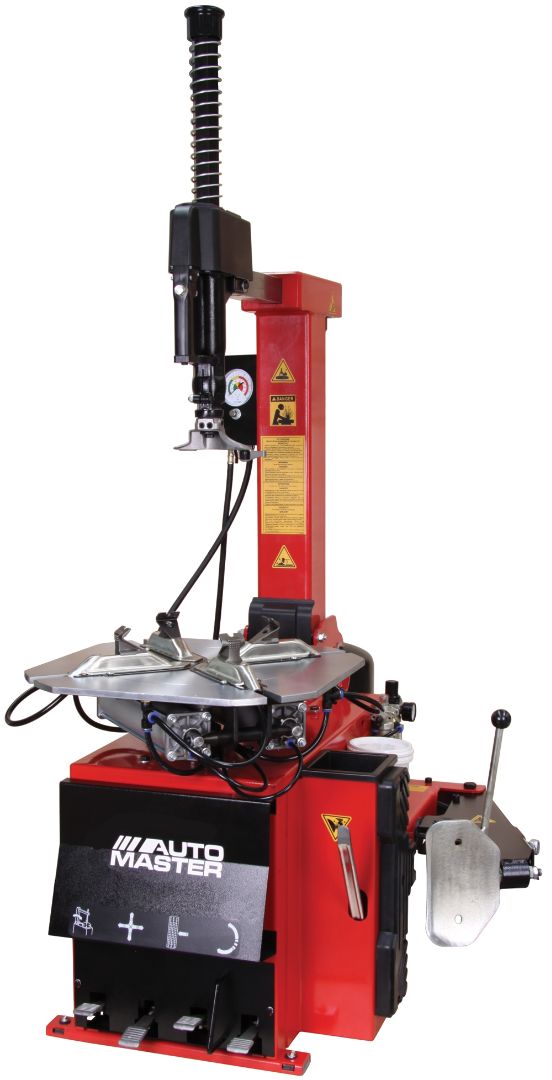

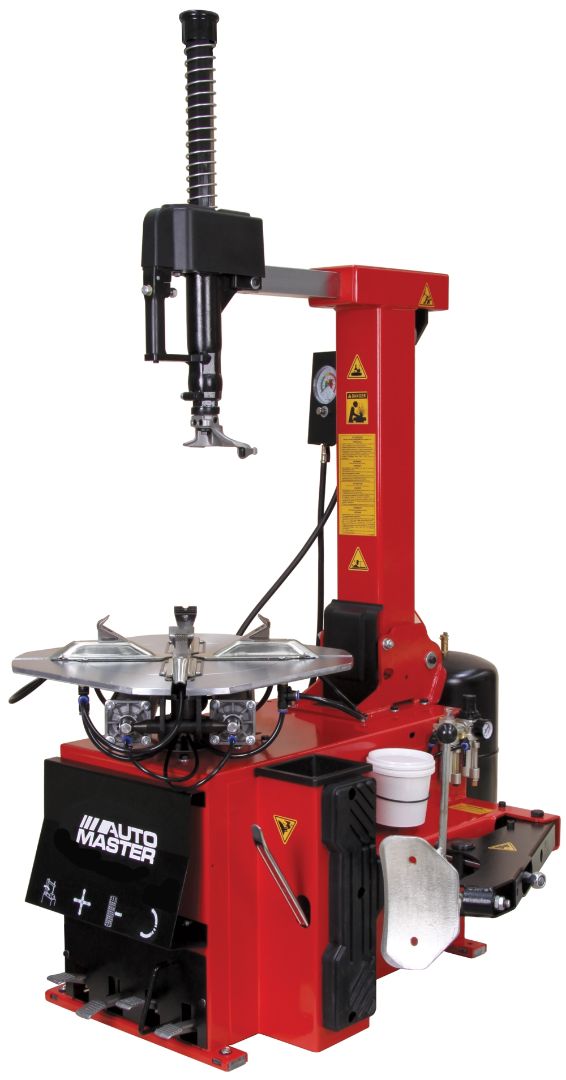

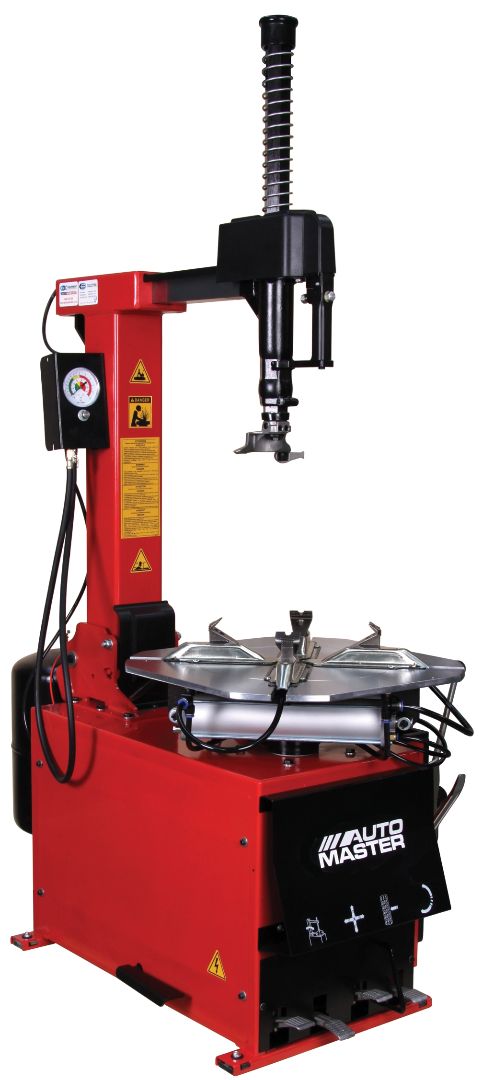

AM-202IT Automaster Tyre Changer

The Automaster AM-202IT tyre changer has a pneumatically controlled tilt back post and is the perfect changer for workshops that do tyres or an ATV/motorcycle dealer.


Supplied standard with a pedal controlled inflation gauge and tubeless air blaster system.

Designed to change the tyres on both high priced alloy wheels and steel wheels without damaging the rim or the tyre.

The powerful bead breaker is designed to break even the most stubborn and rusted beads without damage.

The turntable jaws (which can be covered with plastic protection covers for reverse fit alloy rims ) hold the rim securely without damaging the surface of the rim.

These jaws can be moved to three different positions along the slides of the turntable to either increase or decrease the clamping range.

Supplied standard with an inflation gauge, plastic jaw covers, head inserts, tyre lever, lube brush and bead lube.
You can also add the HP1 low profile helper arms to make changing difficult tyres easy, and help reduce the risk of damage caused by tyre levers.

Automaster Tyre machines deliver years of dependability because they are built using only the highest quality component parts.


Automaster Equipment stocks a complete inventory of parts for the equipment we sell.

  • Powerful bead breaker with specially shaped blade and rubber back pad for fast, safe bead breaking with precise control for tyres and rims.
  • Special mount/demount head design with plastic inserts allows fitting and removal of even the most difficult tyres with ease and with no damage to the wheel rim or tyre bead. Suitable for alloy wheels.
  • Single speed single phase turntable rotates in both directions without removing the rim.
  • 2 Speed three phase option in IT models
  • Powerful 4 head turntable clamping system covers 10" to 24" wheels with ease.
  • Pneumatic Tilting post
  • Japanese water trap and oiler
  • Includes lube brush, lube container and heavy duty tyre lever.
  • Includes plastic jaw protecters.
Outside Wheel Clamping 10"- 22"
Inside wheel Clamping 12" - 24"
Maximum Tyre Diameter 39"
Rim width 3"-13"
Operating Pressure 90psi
Weight 242kg
Bead Breaking Force 2500kg
Drive Motor 230v/1ph or 380V 3ph 2 Speed
Turn Table Torque 1200nm
